Daminɛ

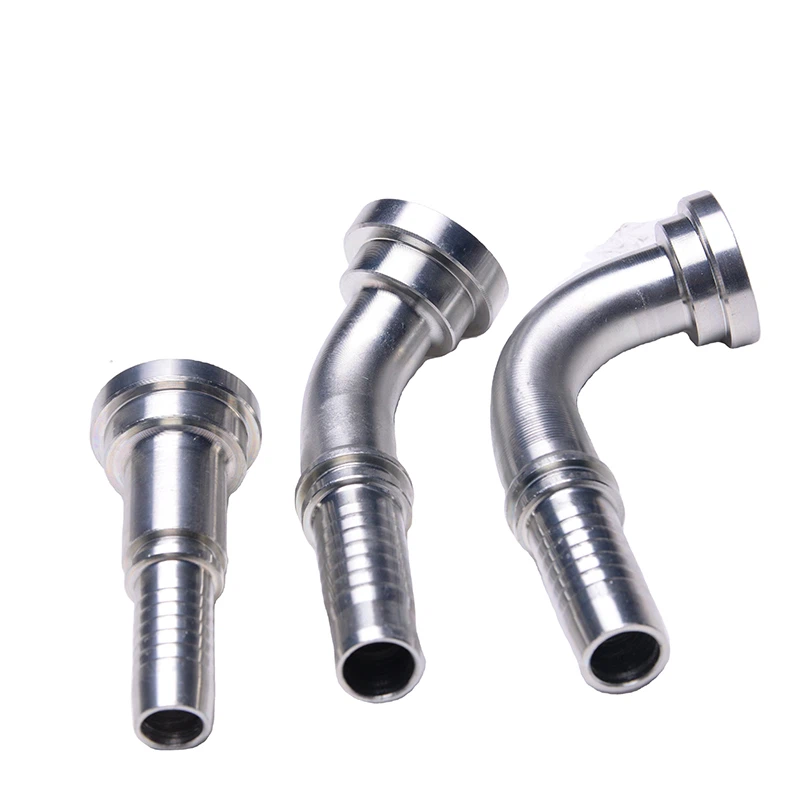

Hydraulic Flange ye gɛlɛya ye-}pressure yɔrɔ min labɛnna walisa ka se ka mɔgɔw latanga ani ka ji bɔ -} ji yɛlɛmani min be kɛ jiko sisitɛmu kɔnɔ, o be se ka latanga ani ka ji bɔ. O la, a be se ka kɛ ko SAE J518 ani ISO 6162 ka sariyaw be bɛn ɲɔgɔn ma, o b’a to i be se ka baara kɛ cogo ɲuman na izini, telefɔni ani hydraulique baarakɛyɔrɔw la.
kunkow
|
PART NO. |
ƝƐFƆLI SIZE . |
AN KA KUMA |
ƝƐFƆLI |
|||||
|
DN |
TIIRININ |
A |
C |
D |
H |
L |
||
|
87341-08-08 |
1/2" |
12 |
08 |
58.2 |
30.2 |
24 |
23.3 |
6.73 |
|
87341-12-08 |
3/4" |
12 |
08 |
58.9 |
38.1 |
31.7 |
24 |
6.73 |
|
87341-12-10 |
3/4" |
16 |
10 |
70.1 |
38.1 |
31.7 |
25.3 |
6.73 |
|
87341-12-12 |
3/4" |
20 |
12 |
77 |
38.1 |
31.7 |
28.9 |
6.73 |
|
87341-16-12 |
1" |
20 |
12 |
77 |
44.4 |
38 |
28.9 |
8 |
|
87341-16-16 |
1" |
25 |
16 |
85.2 |
44.4 |
38 |
29.7 |
8 |
|
87341-16-20 |
1" |
32 |
20 |
94.5 |
44.4 |
38 |
33.8 |
8 |
|
87341-20-16 |
1.1/4" |
25 |
16 |
85.2 |
50.8 |
43 |
29.7 |
8 |
|
87341-20-20 |
1.1/4" |
32 |
20 |
94.5 |
50.8 |
43 |
33.8 |
8 |
|
87341-24-20 |
1.1/2" |
32 |
20 |
95.9 |
60.3 |
50 |
35.2 |
8 |
|
87341-24-24 |
1.1/2" |
40 |
24 |
109.9 |
60.3 |
50 |
39.1 |
8 |
|
87341-32-24 |
2" |
40 |
24 |
109.9 |
71.4 |
62 |
39.1 |
9.53 |
|
87341-32-32 |
2" |
50 |
32 |
129.3 |
71.4 |
62 |
46.3 |
9.53 |
Paramɛtiriw/Kumaden ka kunnafoniw .
|
Yɛrɛyɛrɛ |
ZheJing, Sinuwa jamana na |
Ladonni loon |
ka kumaɲɔgɔnya |
|
seereya |
GB/T19001-2016 idt ISO9001:2015 |
paki |
landako |
|
Minan |
Karibɔn ka fani |
Garanti |
1 |
|
saraya kumaden |
TT |
MOQ |
2000 |
|
Cogo |
Kura |
Ɲɛ |
zɛnki gwɛman, kulɛri zɛnki . |
Kɔmpaɲi koo la
Nafaw
N’i ma jateminɛ kɛ
A dilanna ka bɔ sanfɛ-grade nɛgɛ la min be ni nɛgɛ ye min be se ka yɛlɛma yɛlɛma.
Nɛgɛ min be se ka kɛ 316 ye, o be se ka kɛ ka yɔrɔw tiɲɛ .
3x ka baara ka se ka kɛ wagatijan kɔnɔ ka tɛmɛ izini ka sariyaw kan .
Kunnafoni minw be sɔrɔ ka baara kɛ ka ɲɛ
A sɛgɛsɛgɛra ko a be se ka se 10 000 PSI ka burt pressure ma .
A be se ka kɛ ko a ka ɲi ka kɛ ni yɛlɛmaniw ye minw be kɛ ni degunbaw ye .
100% degun min sɛgɛsɛgɛra ka kɔn ci ɲɛ .
Ɛnsɛniyeri kɛcogo .
CNC ka masinw ka se ±0,01mm ma walisa ka se ka baara kɛ ka ɲɛ .
Laser- ye lɔnniya tagamasiɲɛw ye walisa ka se ka lɔn .
O la, a be se ka kɛ ko a be yɛlɛma yɛlɛma.
Leak-Sariya min be se ka kɛ .
O la, a be se ka kɛ ko a be se ka kɛ ko a ka ɲi ka kɛ.
Micro- minw banna (Ra < 0,8μm)
A be mɔgɔw ladon yɔrɔ minw na, o be se ka kɛ ko: HNBR O- be don i n’a fɔ sariya .
Duniɲa kuru bɛɛ ka sariyaw
A sɛbɛra ka SAE J518, ISO 6162 ani DIN sariyaw sɛbɛ .
Minɛnw bɛɛ sɛgɛsɛgɛli ni mansin kɔrɔbɔli sɛbɛw ye .
REACH ni RoHS be sariya labato .
Nafaw
Color- tun be kode kɛ ni degun hakɛ ye walisa ka se ka lɔn nɔgɔman na .
Ka kɔn-} ɲɛ, bolokuruw minw be sɔrɔ .
30% ka don joona ka tɛmɛ ɲɔgɔndanfɛnw kan .
Laada sekoyaw
A be sɔrɔ a bonya la k’a ta 1/4" la ka taga se 4" ma.
Fɛɛn kɛrɛnkɛrɛnninw i n’a fɔ nɛgɛ ni titanium .
O la, a be se ka kɛ ko mɔgɔw be ɲɔgɔn minɛ.
Ɲɛnamaya fɛɛrɛ .
Ɛnsɛniyeri dɛmɛbagaw ka jɛnkulu y’u yɛrɛkun di .
Sisitɛmuw ka bɛnkelenya sɛgɛsɛgɛli
O kan, a be se ka kɛ ko a be se ka kɛ ko mɔgɔw be ɲɔgɔn minɛna.
Industry-Layira .
saan 5 kɔnɔ, garanti min be sɔrɔ saan 5 kɔnɔ
Kalo 24 ka nɔgɔ latanga garanti .
Ayi-/{1}}yelikɛli sariya .
Duniɲa kɔnɔ lozisiyɛliw ka jɛnkulu .
ISO- ye fɛnw dilanyɔrɔw lɔn diɲɛ bɛɛ kɔnɔ .
O cogo kelen na, a be se ka kɛ ko a be ci ka taga fɛɛnw kan minw be bɛn ni sariyaw ye .
Sɛbɛnw dafanin minw be sɔrɔ diɲɛ kɔnɔ, u be se ka ci .
FAQ
I: degun hakɛ jumanw lo be sɔrɔ?
A: Standard ka degun hakɛ:
3000 PSI (207 bar)
6000 PSI (414 bar)
O la, a be se ka kɛ ko 10 000 PSI (690 bar) be sɔrɔ .
I: I be minan jumanw lo di?
A: Fɛɛn minw be se ka lɔ:
Nɛgɛ karbɔni ni zɛnki pilati .
304/316 nɛgɛ .
Fɛɛn kɛrɛnkɛrɛnninw:
Nɛgɛ min tɛ se ka yɛlɛma
Titanium nɛgɛw
Nikɛli- .
I: N’ be se ka yɔrɔ min sugandi, n’ b’o sugandi cogo di?
A: Sugandilifɛn jɔnjɔnw:
Hose kɔnɔyɔrɔ (ID)
Baarakɛcogo
Aw ka kan ka sara
Lamini cogoyaw
An ka fɛɛrɛko jɛnkulu be dɛmɛ di gwansan.
Ɲiningali: Fɛɛrɛ jumanw lo be sɔrɔ?
A: Paramɛtiri sugandiliw ye:
O- ɲɛda tagamasiɲɛ (ORFS)
Aw ka ɲɔgɔn kunbɛn ni ŋɛɲɛ ye .
ɲɛda min be yɛlɛma ni spiral jourse garket ye .
Metal-to-mettali tagamasiɲɛ .
I: Yala i ka flansiw be se ka yɛlɛma ɲɔgɔn na ni marki wɛrɛw ye wa?
A: Ɔnhɔn, an ka flangew labɛnna walisa ka se ka yɛlɛma ɲɔgɔn na pewu ni SAE/ISO sariya wɛrɛw ye. An b’a ɲini aw fɛ aw ka sɛgɛsɛgɛri kɛ ka ɲɛsin baarakɛcogo kɔrɔtaninw ma.
I: I ka wagati min be kɛ ka mɔgɔw lasun u ka yɛlɛma, o ye mun lo ye?
A: Labɛnni ɲɛminɛ wagatiw:
A be se ka kɛ: tile 1-3
Landako: lɔgɔkun 2-3
Fɛɛn kɛrɛnkɛrɛnninw/layidu: lɔgɔkun 4-6 .
Baara minw be kɛ ka ɲɛ, u be sɔrɔ.
I: Yala i be ladili dɔw di minw be se ka sigi sen kan wa?
A: Ɔnhɔn, an b’a ladon:
Step{{0}by}by-step instalats d’amprats .
Torque ka fɛɛrɛw
Ladili minw be sɔrɔ lubirikasiyɔn fɛ .
Videwo kalanw n’u y’a ɲini
I: I be ni sɛbɛ jumanw lo ye?
A: An ka seereyali dɔw ye:
ISO 9001:2015
2014/68/EU .
ATEX (yɔrɔ minw be pɛrɛn)
ABS baji ka sɔnni
I: N’ be se ka jii nɔgɔw mara cogo di?
A: Ladilikanw:
Saan o saan, sɛgɛsɛgɛri minw be kɛ .
Torque be baara kɛ lɛrɛ 500 o lɛrɛ 500 kɔnɔ .
Aw k’aw nɔɔ to saan 2 o saan 2 .
O kɔ, u y’a yɛlɛma ka ban saan 5 wala lɛri 20 000 tɛmɛnin kɔ .
I: I ka garanti sariya ye mun lo ye?
A: An be:
5-Sariya min be dan na minanw/baara la .
2-saan baara garanti .
1-Saali garanti .
Garanti ka ɲi ka sigi ka ɲɛ ani ka baara kɛ n’a ye.
